How to Use PBR Materials in Lumion

To use PBR materials in Lumion 2023 or newer, select a Standard Material and load the Color, Roughness and Normal maps into Texture, Roughness and Relief. Add Metalness, Displacement or Opacity when the surface needs them. For Reawote’s original OpenGL normal maps, enable -Y / Flip Green Channel. Match the texture scale to the material’s physical dimensions, then check the result under directional light. This guide uses scanned Reawote materials to explain the complete setup.

The steps below cover the metallic/roughness material system introduced in Lumion 2023. Earlier versions use different controls, including a Gloss workflow.

Published by Reawote (Real World Textures).

Quick setup

  • Start with Color, Roughness and Normal. Add the other maps only when their properties are present in the material.
  • Preserve the scan before adjusting its appearance. Start with Texture, Roughness and Relief at 100%, then make any required corrections.
  • Check normal direction and physical scale. Flip the green channel of an original Reawote OpenGL map once, and use the asset’s Texture dimensions to set the size of one repeat.

Which PBR maps does Lumion support?

A PBR material contains separate textures for color, reflections and surface detail. Lumion’s Standard Material can use the following maps from a Reawote package:

  • Color / Albedo (COL) → Texture (Color Map). The visible color and pattern of the surface.
  • Roughness (ROUGH) → Roughness Map. Controls the sharpness of reflections. Use Roughness directly; invert Glossiness if that is the only map available.
  • Normal (NRM) → Relief / Normal Map. Fine surface detail that reacts to light. Convert the original Reawote OpenGL orientation with the -Y control.
  • Metallic (METAL) → Metalness Map. Use it for actual metallic areas.
  • Displacement / Height (DISP) → Displacement Map. Additional visible surface relief.
  • Opacity (OPAC) → Opacity Map. Masks openings or transparent areas.
  • Ambient Occlusion (AO) → no dedicated AO map slot. Keep the file for other renderers; the Standard Material does not require you to assign every map in the package.

Download the maps and their real dimensions

  1. Open the PBR asset in the Reawote library.
  2. Check its Resolution, Texture dimensions and Included maps. Record the physical width and height before downloading.
Reawote OAK-NATURAL asset page showing 8K resolution, 190 by 85 cm texture dimensions and the included maps.
  1. Choose a resolution appropriate to the camera distance and output size. Start with 2K or 4K and inspect the final view before using larger maps.
  2. Download the PBR package and keep its maps together in a clearly named folder.
  3. Prepare the Color, Roughness and Normal maps first, followed by any needed Metalness, Height or Opacity maps.

Pixel resolution and physical texture size are separate settings. Choosing an 8K download does not mean the texture should cover a larger area of the model.

What do Reawote texture map abbreviations mean?

Reawote texture filenames identify the asset, the map type and the download resolution. Use the map code to choose the correct image for a material input. The following key covers the codes used across Reawote texture sets; each asset includes the maps listed on its product page.

How to read a texture filename


  • GENERAL_0041_STONE-PAVEMENT-6 identifies the asset: its prefix, number and material name.
  • COL identifies the Color map.
  • 8K is the download resolution label.
  • .jpg is the image file format.
Reawote STONE-PAVEMENT-6 texture set showing 8K JPG maps and the 16-bit DISP16 and NRM16 TIF versions.
Example texture set: the same asset name is followed by a map code, the 8K resolution label and an image extension.

Color and surface map codes

  • COL — Color.
  • DIFF — Diffuse.
  • BIMCOL — BIM color.
  • ROUGH — Roughness.
  • GLOSS — Glossiness.
  • METAL — Metallic.
  • AO — Ambient occlusion.
  • NRM — Normal map.
  • NRM16 — Normal map, 16-bit version.
  • DISP — Displacement.
  • DISP16 — Displacement, 16-bit version.
  • OPAC — Opacity.

Additional map codes

  • REFL — Reflection.
  • SPEC — Specular.
  • SPECLVL — Specular level.
  • IOR — Index of refraction (IOR).
  • REFR — Refraction.
  • TRANSL — Translucency.
  • SSS — Subsurface scattering.
  • SSSABSORB — Subsurface scattering absorption.
  • ANIS — Anisotropy.
  • SHEEN — Sheen amount.
  • SHEENGLOSS — Sheen glossiness.
  • ID — Selection mask.

COL, DIFF and BIMCOL are separate map labels. Use COL for the Color / Albedo steps in this guide. Select other maps when the material workflow calls for them. REFL means Reflection, while REFR means Refraction; SPEC and SPECLVL identify Specular and Specular level respectively.

Bit depth, resolution and file format describe different things. The 16 in NRM16 and DISP16 means 16-bit depth; 16K would describe image resolution. JPG, PNG and TIF identify the file format. In this example, DISP and NRM are supplied as JPG files, while DISP16 and NRM16 identify the 16-bit TIF versions. Check the image properties when you need to confirm bit depth, and use a file version supported by the material input.

The resolution label does not give the physical size of a texture repeat. Use the asset’s Texture dimensions for that. A package can include maps for several workflows; connect the maps required by the selected application and material type.

For the Lumion Standard Material setup below, begin with COL, ROUGH and NRM. Keep the AO file with the package for workflows that use it; this Standard Material has no dedicated AO-map slot.

How do you import and connect PBR textures in Lumion?

  1. Open the model in Lumion.
  2. Open the Materials editor and select the surface you want to change.
  3. Under New, choose Standard Material, then open its settings.

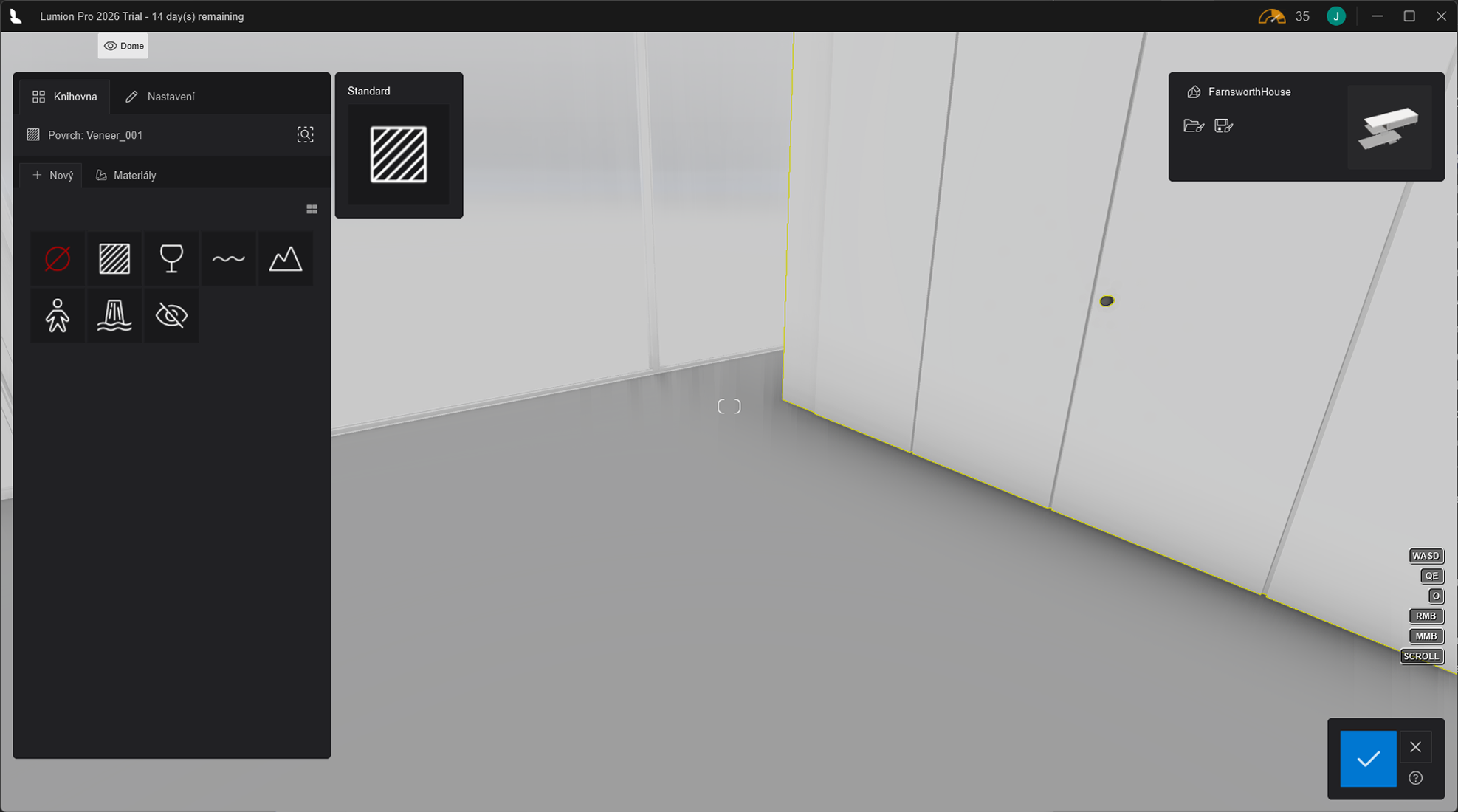

Selecting Standard Material in the Lumion Materials editor.

Base Color and Roughness

Load the Reawote Color / Albedo map into Texture (Color Map). Set Texture to 100% to use the image’s color without blending in the material’s solid color.

Load the Roughness map into Roughness Map and start at 100%, which uses the values stored in the map. Assess the result with something visible to reflect, such as a window or large light source. Adjust the value only after checking the map assignment and lighting.

A Glossiness map describes the opposite of Roughness. If the package contains both, choose Roughness. If only Glossiness is available, use Lumion’s map inversion control.

Normal and Metalness

Load the Normal map into Relief / Normal Map and start with Relief at 100%. This uses the normal detail stored in the texture; values above 100% amplify it. Follow the normal-direction steps below for the original Reawote map.

Load the Metallic map into Metalness Map when the material contains metal. Keep wood, stone, plaster, ceramic and ordinary fabric non-metallic. Strong reflections alone do not make a surface metallic.

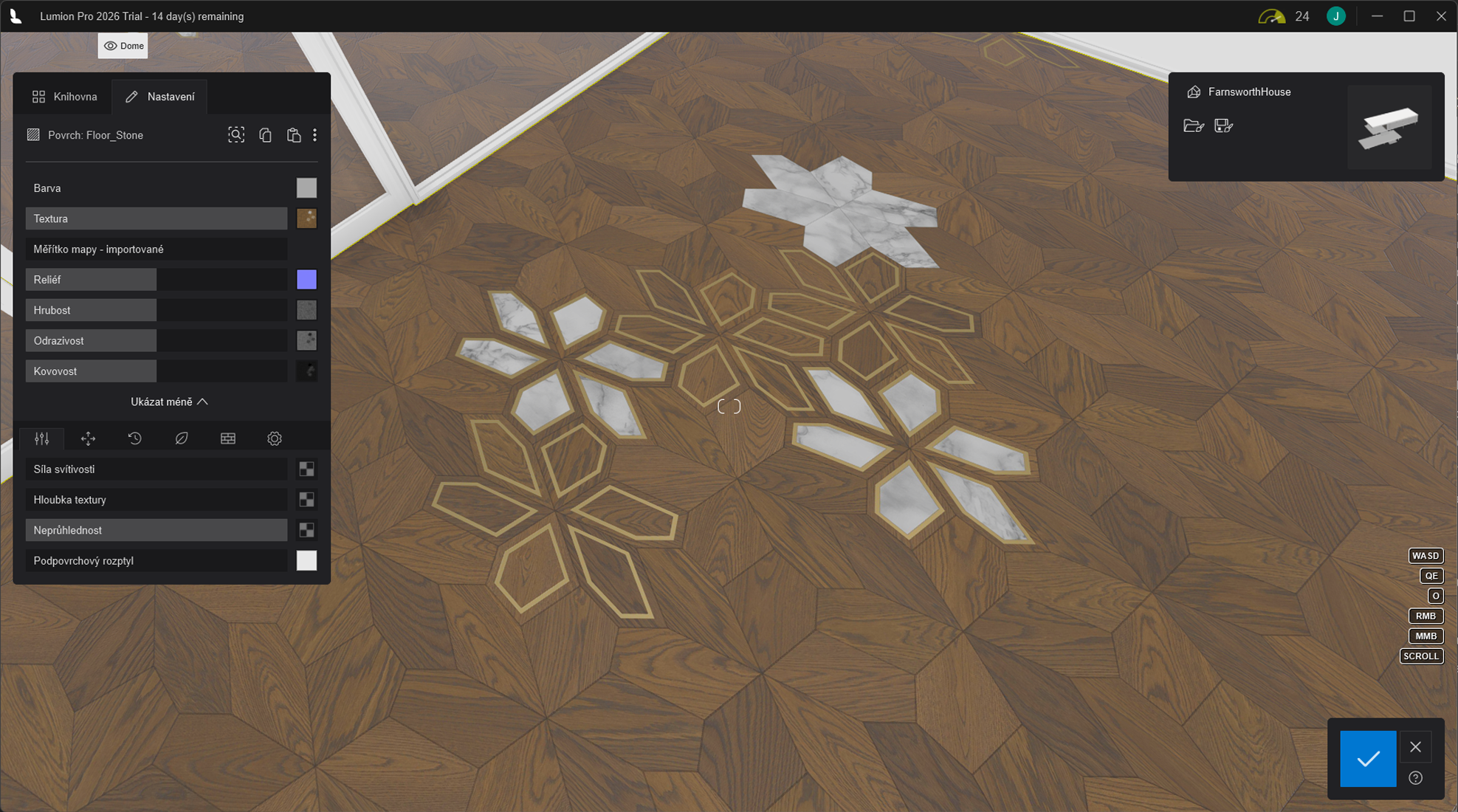

Lumion material settings beside an ornamental wood floor with stone and metal details.

Displacement and Opacity

For stronger relief, open the extended settings and load the Reawote Height / Displacement map into Displacement Map. The corresponding control is labelled Texture depth in the screenshot below. Keep Relief above 0%, which Lumion requires for the displacement effect, and adjust the depth to suit the surface.

Lumion’s documentation specifies square displacement images with pixel dimensions divisible by four, such as 2048 × 2048. If you prepare resized copies, keep the maps aligned and recheck the material’s physical proportions.

Use displacement for visible texture relief. Model details that need a precise physical edge profile, and inspect the final view before relying on a texture to represent them.

For a mesh, grille or perforated panel, load the Reawote Opacity map into Opacity Map. Check the openings against the color texture. Use a suitable Glass material when the goal is glass with refraction.

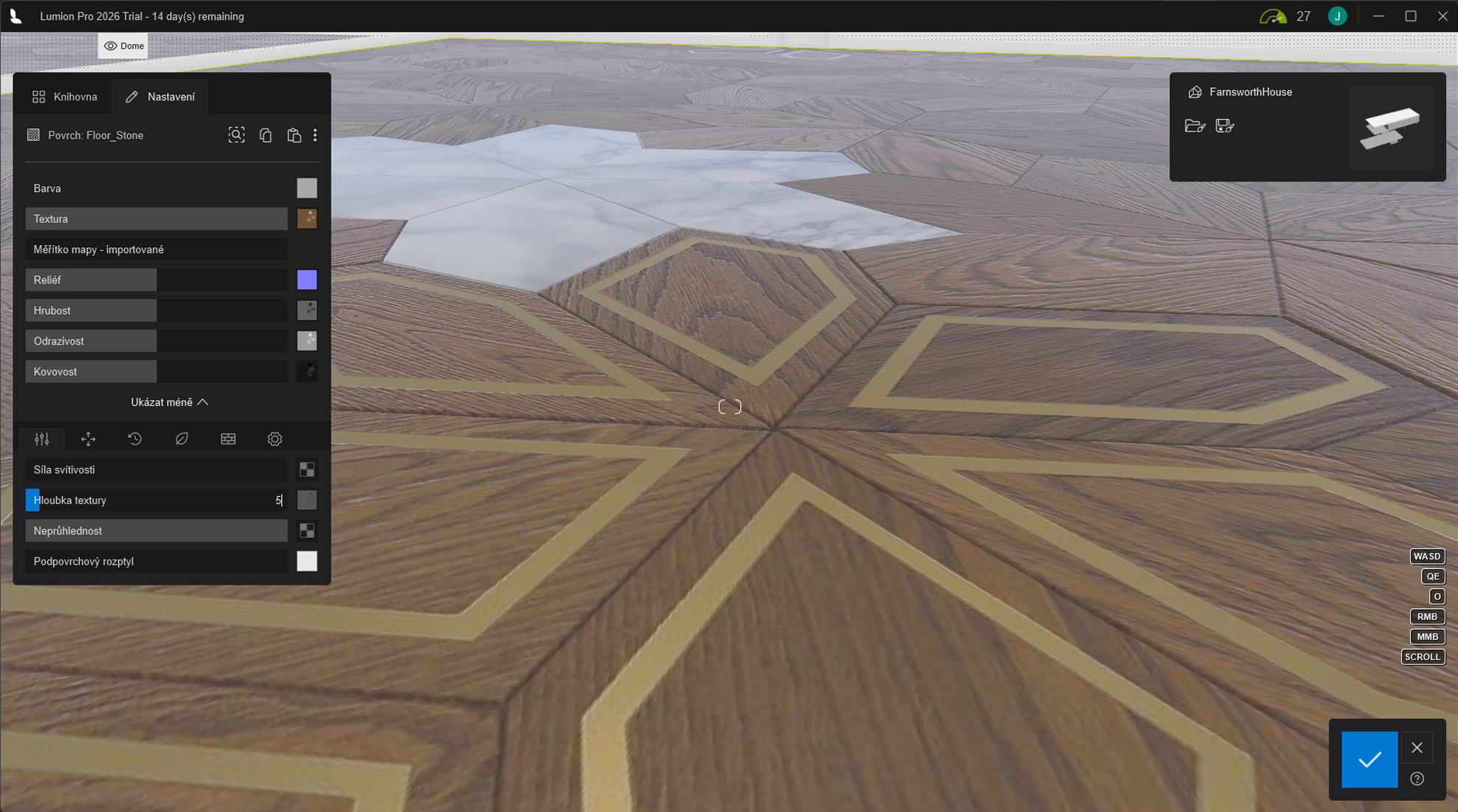

Lumion Texture depth control and a close-up of relief in the ornamental wood floor.

For the controls and their version differences, see Lumion’s Standard Material reference.

Should you flip the green channel of a normal map in Lumion?

Yes, for an original Reawote OpenGL normal map. Lumion uses DirectX normal maps, so the Y direction must be converted.

  1. Load the original Normal map into Relief / Normal Map.
  2. Enable -Y / Flip Green Channel.
  3. Check a recognizable feature under directional light, including its top and bottom edges.

If you already converted the map to DirectX in an image editor, leave this conversion off. Flipping the green channel twice returns it to the original orientation.

Inverse Normal Map is a different operation: it changes both the red and green channels to reverse the bump direction. Use -Y for OpenGL-to-DirectX conversion.

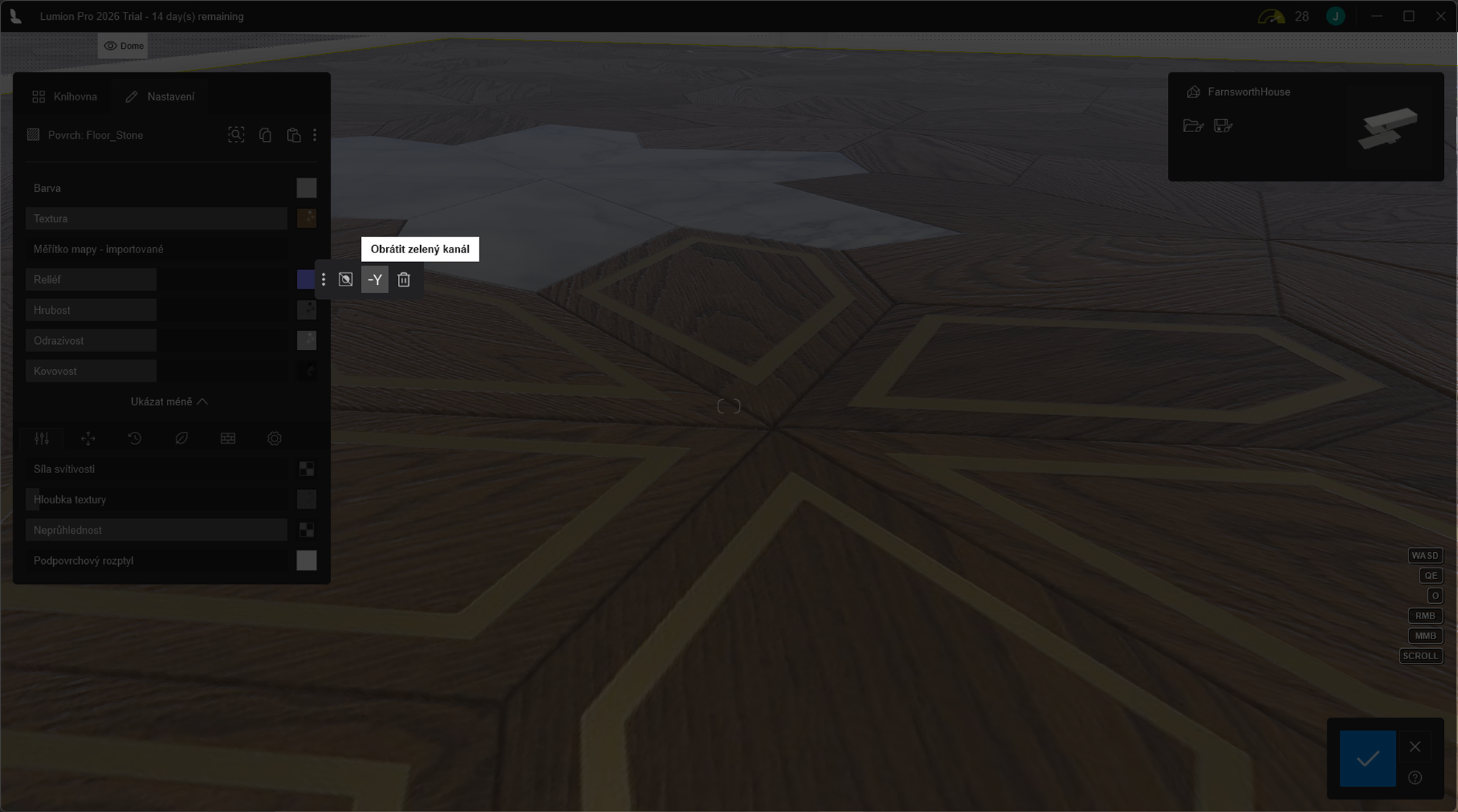

Flip green channel control for a Normal map in the Lumion material settings.

How do you set the real-world texture scale in Lumion?

The Reawote Texture dimensions describe the physical size of one complete texture repeat. Match that repeat to the model before evaluating grain, joints or surface detail.

  1. Read the material’s physical width and height on its Reawote asset page.
  2. For a square repeat, set a custom Map Scale in meters.
  3. Check the repeat against geometry with known dimensions.

The screenshot below shows BROWN-W504-LOTUS with a 540 × 540 cm repeat and Map Scale set to 5.4 m. It is a different material from the OAK-NATURAL download example above.

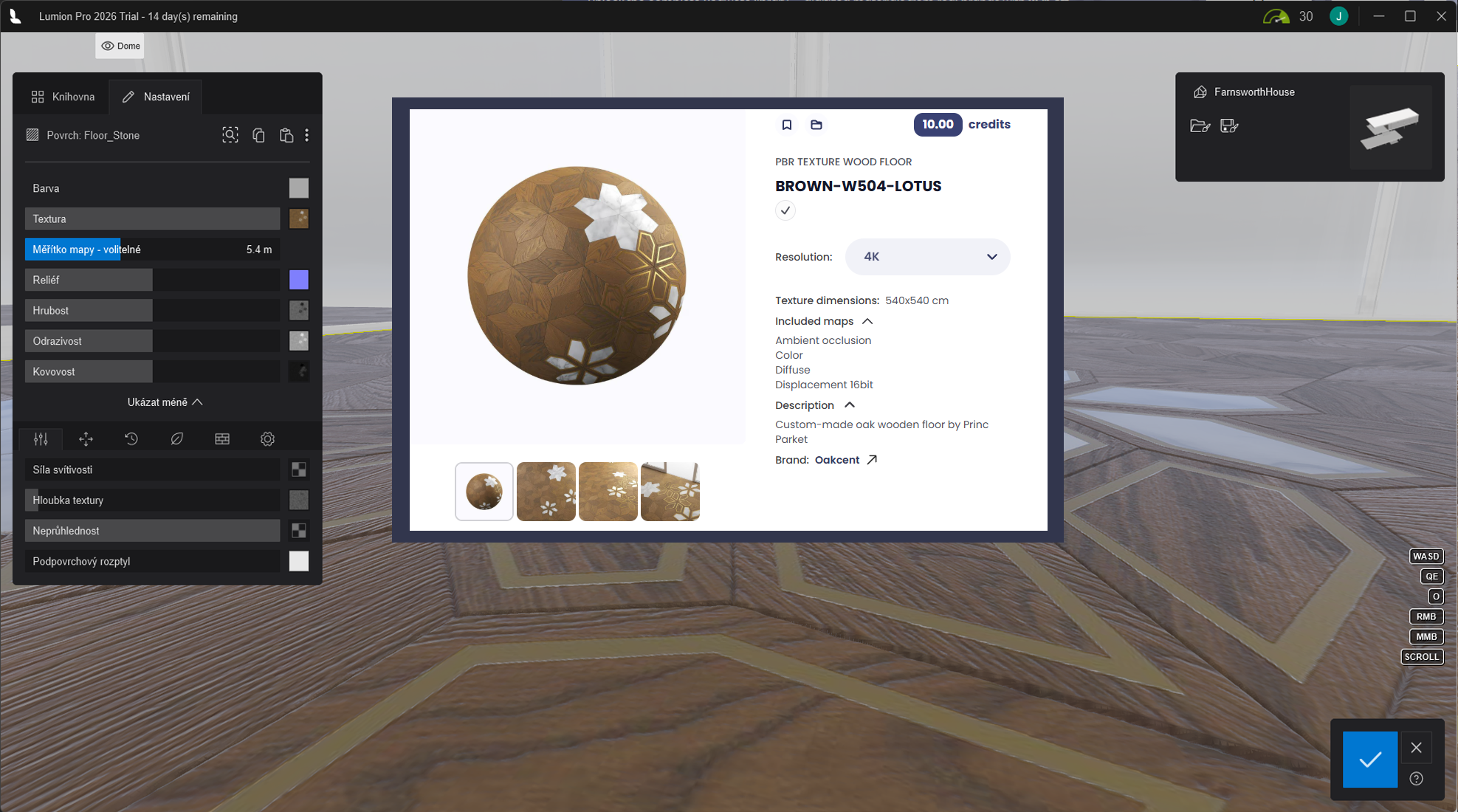

BROWN-W504-LOTUS texture dimensions of 540 by 540 cm beside Lumion Map Scale set to 5.4 m.

A custom Map Scale in Lumion 2023 and newer uses world-space units. It keeps the texture at that physical size even if you scale the imported model. Setting Map Scale to 0 instead uses the UV mapping imported from the modeling application.

For a rectangular sample such as the 190 × 85 cm OAK-NATURAL material shown in the download screenshot, verify both dimensions. One repeat should cover 1.90 × 0.85 m. If you need to control width and height precisely, prepare that UV mapping in the modeling application and use Map Scale 0 in Lumion. Keep every texture map on the same mapping.

How do you fix common PBR material problems in Lumion?

  • Detail is lit from the wrong direction: check the original normal map’s convention and the -Y setting. Avoid applying the green-channel conversion twice.
  • The material looks too glossy: check for Glossiness in the Roughness slot, then review the Roughness value.
  • Wood, stone or plaster looks metallic: check Metalness and any loaded Metallic map.
  • Displacement is not visible: confirm that the Height map is loaded, the displacement value is active and Relief is above 0%.
  • The pattern looks stretched or the wrong size: check the physical width and height of the repeat, plus whether Lumion is using custom mapping or imported UVs.
  • A map is missing: assign it manually to its Standard Material slot and check the result.

How do you save a Lumion material for another project?

  1. Open the finished material’s Context Menu.
  2. Choose Save to Custom Materials.
  3. Give the material a clear name and category.
  4. Find and reuse it later under Custom Materials.

You can also save an .LMAT file to transfer an individual material. Before transferring, check for warnings on textures inherited from the modeling application; load the Reawote images directly in Lumion when needed. See the official guide to saving and loading Lumion materials.

Frequently asked questions

Why does my PBR material look tinted?

Check the Texture slider. At 100%, Lumion uses the texture image for the surface color; lower values blend it with the material’s solid color. Start at 100% when reproducing a scanned product, then evaluate lighting and exposure.

Can I use an 8K texture without changing its real-world size?

Yes. Resolution controls the number of pixels; Map Scale or imported UVs control the physical repeat. Keep the same physical dimensions when switching between resolutions, and use a larger map only when its extra detail is visible in the final image.

Do I need to use every map in the Reawote download?

No. Start with Color, Roughness and Normal, then add the channels needed by the surface. For example, an opaque non-metallic wall does not need an Opacity map or a Metallic map, and Lumion’s Standard Material has no dedicated AO texture input.

Using the same materials in another renderer? See our guides to PBR materials in D5 Render and PBR materials in Twinmotion for their map inputs, normal conventions and height-map controls.

Explore PBR materials in the Reawote library →
